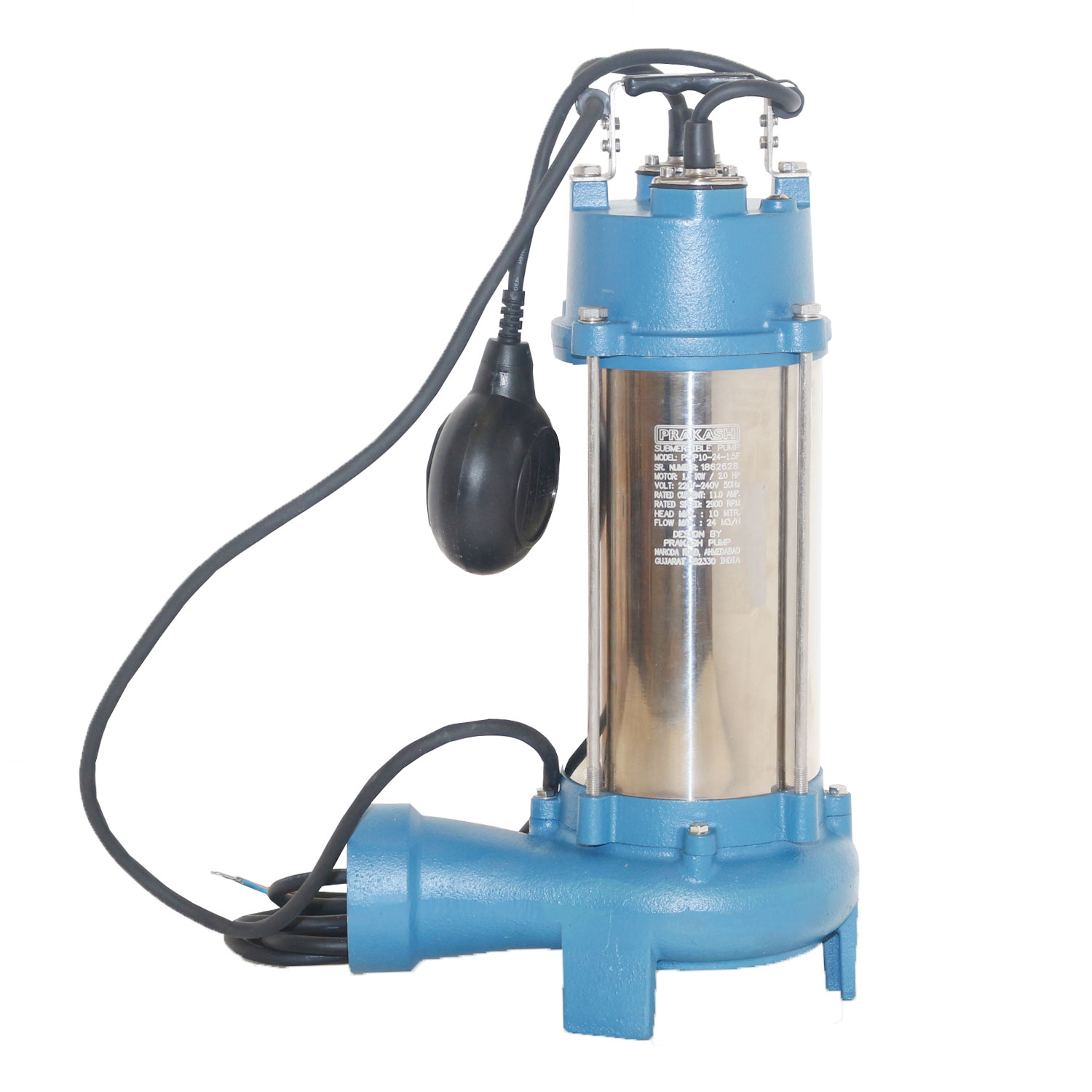

PRAKASH 2 HP SEWAGE PUMP (CUTTER) PSCP10-24-1.5F

For Product Price WhatsApp Us

WhatsApp Us Compare
SKU: PSCP10-24-1.5F Category:



Prakash Pump manufactures and supplies technologically advanced Asia’s foremost and prominent Sewage Cutter Pump, specially designed to handle the large concentration of solids and/or tougher solids that conventional sewage pumps cannot handle.

This pump also provides clog-free operation by macerating those solids that might clog other types of submersible pumps.

This Pump includes around 2 models with different dimensions, power and flow rate so that user can choose the pump model according to their requirements.

These pumps are specially designed for Scum pumping at waste water treatment plant, Municipal projects and Industrial packaged pump station. Also it can be used for Home and domestic application (Special for the kitchen), Pumping agricultural manure (dairy, hog and poultry) applications respectively.

Sewage Cutter Pump: Top Features

  • Sewage draining: Submersible pump with cutter is an ideal machine for draining sewage
  • A high-speed rotating cutter: A high-speed rotating cutter is assembled at the inlet hole of the pump, which makes it cool and easy to cut off long-fiber and firm sundries contained in the sewage, so as to elude the impeller is clogged by the entanglement.
  • Thermal overload Protector: The protector in the motor can automatically cut off the power when it overheated or overloaded, thus guarantee the security and reliability of pump’s running even in the atrocious environment.
  • Low power requirement and low noise.
  • Easy Installation and Servicing.
  • High efficiency, reliable and cost effective.
  • Design: Compact size and nice in appearance.

 Specifications:

A] Technical Specifications:

  • Maximum immersion depth: 5m
  • Power supply: Single phase 220V, ±10% / 50Hz;
  • The Maximum density of Tran’s medium is 1.2×10³kg/m³.
  • The Viscosity of trans medium is 7×10-7— 23×10-6m²/s;
  • Flow rate: 0 to 275 LPM
  • Head : up to 10 m

B] Operating range:

  • Water temperature: up to 40˚C
  • PH scope :  4-10

Applications:

Prakash pumps make available a complete range of Sewage Cutter Pump solutions to facilitate all the applications, like domestic, industrial, and agricultural and it aids you as a solution to everything you require in water solutions.

The applications covered includes:

  • Scum pumping at the waste water treatment plant
  • Municipal projects
  • Industrial packaged pump station
  • Home and domestic application (Special for kitchen)
  • Pumping agricultural manure (dairy and poultry)

Model

Model Power Outlet (INCH) Head Discharge
PSP7-9-0.37F 0.37/0.5 2 10 280
PSCP10-16-0.75F 0.75/1 2 10 275
PSCP10-24-1.5F 1.5/2 2 10 400

Specifications

Sewage Cutter Pump

Specification:

  • Maximum immersion depth: 5m
  • Water temperature: Upto 40oC
  • Power supply: Single phase —220V ±10% / 50Hz;
  • The pH scope should be 4-10
  • Maximum density of Tran’s medium is 1.2×10³kg/m³.
  • Viscosity of trans medium is 7×10-7 — 23×10-6m²/s;



Application:

  • Scum pumping at waste water treatment plant
  • Municipal projects
  • Industrial packaged pump station
  • Home and domestic application (Special for kitchen)
  • Pumping agricultural manure (dairy and poultry)

Description:

Sewage cutter pump is design to handle large concentration of solids and/or tougher solids that conventional sewage pumps cannot handle. It provides clog-free operation by macerating those solids that might clog other types of submersible pumps.

Function & Feature:

Submersible pump with cutter is an ideal machine for draining sewage. A high-speed rotating cutter is assembled at the inlet hole of the pump, make it easy to cut off long-fiber and firm sundries contained in the sewage, so as to avoid the impeller is blocked by the entanglement.
The protector in the motor can automatically cut off the power when it overheated or overloaded, thus guarantee the security and reliability of pump’s running even in the atrocious environment.
