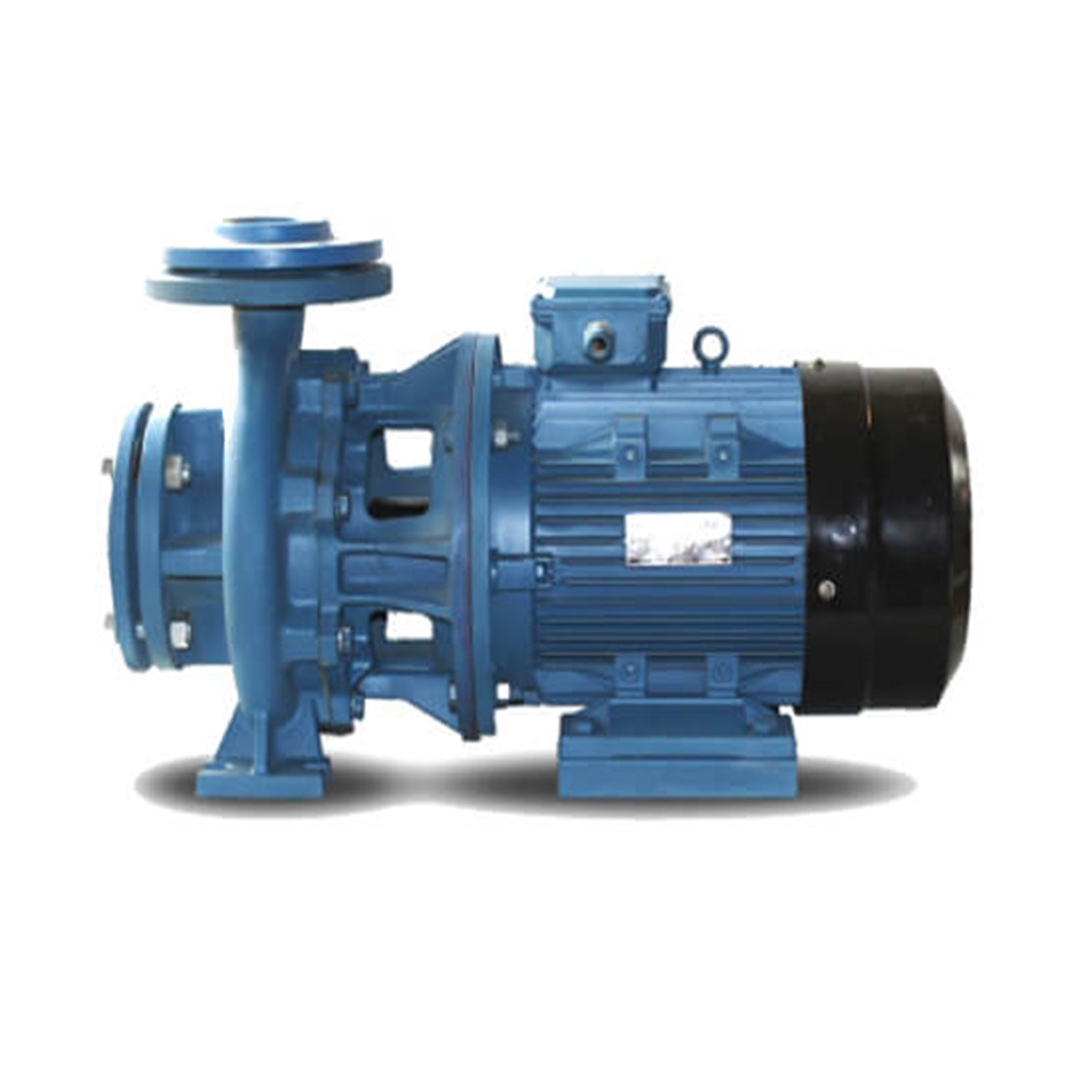

Prakash Solo Power Pump

For Product Price WhatsApp Us

New
WhatsApp Us
Add to Wishlist
Compare
SKU: PSPP-3 Category:

Applications

  • Civil
  • Agricultural
  • Industrial or General Plant use.
  • Water Supply
  • Spray or flowing irrigation
  • Autoclave feed
  • High pressure system
  • Heating
  • Conditioning and any other general service
  • requiring transfer of clean liquids.

Performance Range

  • Flow: Up to 1500 LPM
  • Head: Up to 88m
  • Speed 2900 RPM
  • Power 2.2Kw – 22Kw.

Application Limits

  • Manometric Suction Lift Up to 8m to 10m
  • Liquid Temperature between 10°C to 105°C
  • Ambient Temperature Up to 40°C
  • Working Pressure 10 Bar
  • 50 Hz

Installation and Use

These pumps are ideal for pumping clean water and other chemically and mechanically non-aggressive liquids. These system can be installed in any position, provide the inlet opening faces upwards, and, thanks to their Special design-which allows back pull out of the motor and the rotary parts Of the pump and subsequent re-assembly without having to remove the pump Body and the pipes connected to it – can be easily and conveniently used for a wide variety of applications in civil, agricultural, industrial or general plant uses. Water supply, spray or flowing irrigation, autoclave feed, high pressure system heating, conditioning and any other service requiring transfer of clean liquids

Model

Model Power Phase Inlet/Outlet Max. Flow (lpm) Max. Head (m) Max. Suction (m)
KW HP
PSPP-3 2.2 3 3 3” X 3” 1300 19 8-10
PSPP-5.5 4 5.5 800 36
P5PP-7.5 5.5 7.5 1300 38
PSPP-10 7.5 10 1500 45
PSPP-15 11 15 1500 55
PSPP-20 15 20 1500 65
PSPP-25 18.5 25 1500 75
PSPP-30 22 30 1500 88



Model Power Q M³/H 0 6 12 18 24 30 36 42 48 54 60 66 72
KW HP LPM 0 100 200 300 400 500 600 700 800 900 1000 1100 1200
PSPP-3 2.2 3 H meters 19 18.5 18 17.5 17 16 15 14 13 11.5 10 8 6



Model Power Q US GPM 0 26 40 53 66 79 90 106 119 132 159 185 211 238 264 317 370 396
M³/H 0 6 9 12 15 18 21 24 27 30 36 42 48 54 60 72 84 90
KW HP LPM 0 100 150 200 250 300 350 400 450 500 600 700 800 900 1000 1200 1400 1500
PSPP-5.5 4 5.5 H meters 36 35.5 35.5 35 34.5 33.5 32.5 31.5 30 28.5 26 22.5
P5PP-7.5 5.5 7.5 38 37.5 37.5 37 36.5 36 35.5 35 34.5 34 33 31.5 30 28 26 22
PSPP-10 7.5 10 45 44.5 44 43.5 43 42.5 42 41.5 41 40.5 39.5 38.5 37.5 36 34 27 22 20
PSPP-15 11 15 55 54.5 54.5 54.5 54.5 54.5 54.5 54 53.5 53 52 50 48 46 43 36 28 24
PSPP-20 15 20 65 64.5 64 63.5 63 62.5 62 62 62 62 62 62 61 58.5 56 50 45 40
PSPP-25 18.5 25 75 75 75 74.5 74.5 74.5 74.5 74 73 72 71.5 71 69 65 61.5 55.5 50 45
PSPP-30 22 30 88 88 88 87.5 87 86.5 86.5 86 86 85 85 85 84.5 82.5 80 75 70 65
