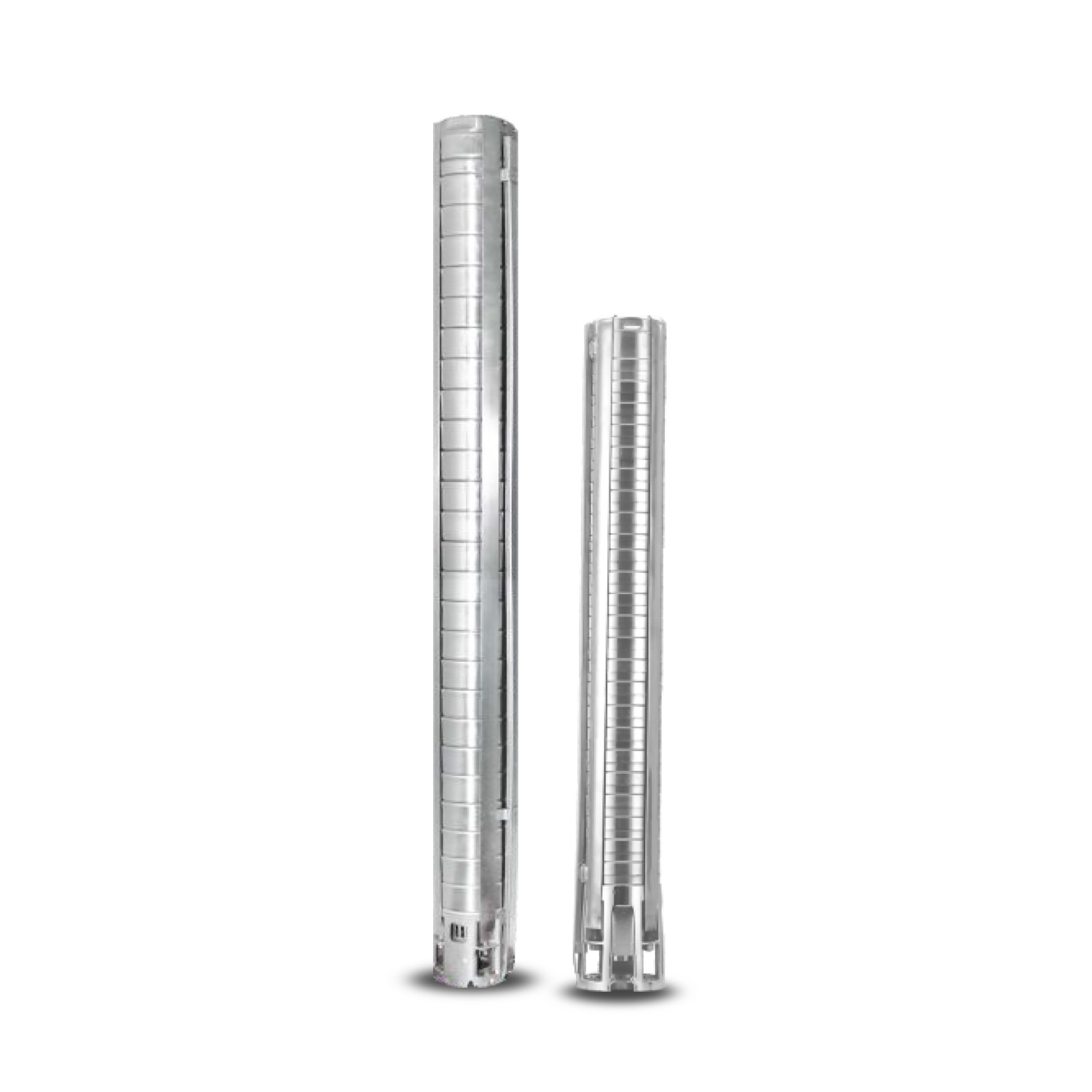

Prakash 4” Submersible Pump Stainless Steel

For Product Price WhatsApp Us

New

Add to Wishlist

SKU: PSM100-1-1 Category: Submersible Pump And Motor

Download Brochure

Applications :

Domestic and community water supply
Irrigation in horticulture and agriculture
Drip and sprinkler application
Booster application
Civil and industrial application

Specifications

Water temperature : Up to 35°C
Minimum internal diameter of well: 4” Ø100mm.
Power : 0.75 to 7.5Kw
Capacity : Up to 11m³/h
Head : Up to 544m
sand quality in to the water : 50g/m³
PH: 6.5 – 8.0

Feature and benefits

Pump sizes for connecting to motor according to NEMA standards.
Delivery Casing with built-in non return valve for stop coming back water.
Manufactured from corrosion resistant materials for long life impellers, diffuser, and Delivery Casing are S.S.AISI-304.
Specific impeller material selection ensures optimal performance in sandy bores.
This type models feature independently floating centrifugal impellers to provide easy starting and long life-automatically adjusting to match pumping conditions for various application.
High quality shaft bearings providing low friction and high wear resistance.
Strong stainless-steel drive shaft ensures positive impeller drive and longer life.

Models

Radial flow SP-R5A.
Mixed flow SP-M8A

Model

Model	Power		C	E	Pump Weight (KG)	Q	US GPM	0	9	11	12	15	18	19	22	26	31
	Power						M /H	0	2	2.4	2.8	3.4	4	4.4	5	6	7
	KW	HP					LPM	0	33	40	47	57	67	73	83	100	117
SP-R5A-8	0.75	1	354	101	4	H Meters		51	44	43	42	40	38	36	32	23	17
SP-R5A-12	1.1	1.5	438	101	5			77	67	65	64	61	57	54	48	35	26
SP-R5A-17	1.5	2	543	101	6			109	95	92	90	86	80	76	67	50	37
SP-R5A-21	2.2	3	627	101	7			134	117	114	112	106	99	94	83	61	45
SP-R5A-25	2.2	3	711	101	8			160	140	136	133	126	118	112	99	73	54
SP-R5A-33	3	4	879	101	10			211	184	179	175	167	156	148	131	96	71
SP-R5A-38	4	5.5	1049	101	11			243	212	208	202	192	179	170	151	111	82
SP-R5A-44	4	5.5	1175	101	12			282	246	240	234	222	208	197	175	128	95
SP-R5A-52	5.5	7.5	1343	101	14			333	290	282	276	263	245	233	206	152	113
SP-R5A-60	5.5	7.5	1511	101	16			384	335	327	319	303	283	269	238	175	130
SP-R5A-75	7.5	10	1826	101	20			480	419	409	399	379	354	336	298	219	162
SP-R5A-85	7.5	10	2036	101	22			544	473	460	448	429	401	381	337	248	184

Submersible Motor Type SM150, Pump Outlet 1.5″ and 2″

Model	Power		C	E	Pump Weight (KG)	Q	US GPM	0	18	26	35	40	44	48
	Power						M /H	0	4	6	8	9	10	11
	KW	HP					LPM	0	67	100	133	150	167	183
SP-M8A-5	0.75	1	425	101	4	H Meters		30	25	23	20	18	15	11
SP-M8A-7	1.1	1.5	509	101	5			42	35	32	28	25	21	16
SP-M8A-10	1.5	2	635	101	6			60	50	45	40	36	30	23
SP-M8A-12	2.2	3	719	101	7			72	60	54	48	43	36	27
SP-M8A-15	2.2	3	845	101	9			90	75	68	60	54	45	34
SP-M8A-18	3	4	971	101	10			107	89	82	72	64	53	41
SP-M8A-21	4	5.5	1097	101	11			125	104	95	84	75	62	48
SP-M8A-25	4	5.5	1265	101	13			149	124	114	100	89	74	57
SP-M8A-30	5.5	7.5	1475	101	15			179	149	136	120	107	89	68
SP-M8A-37	5.5	7.5	1769	101	18			221	184	168	148	132	110	84

Submersible Motor Type SM100, Pump Outlet 2”
