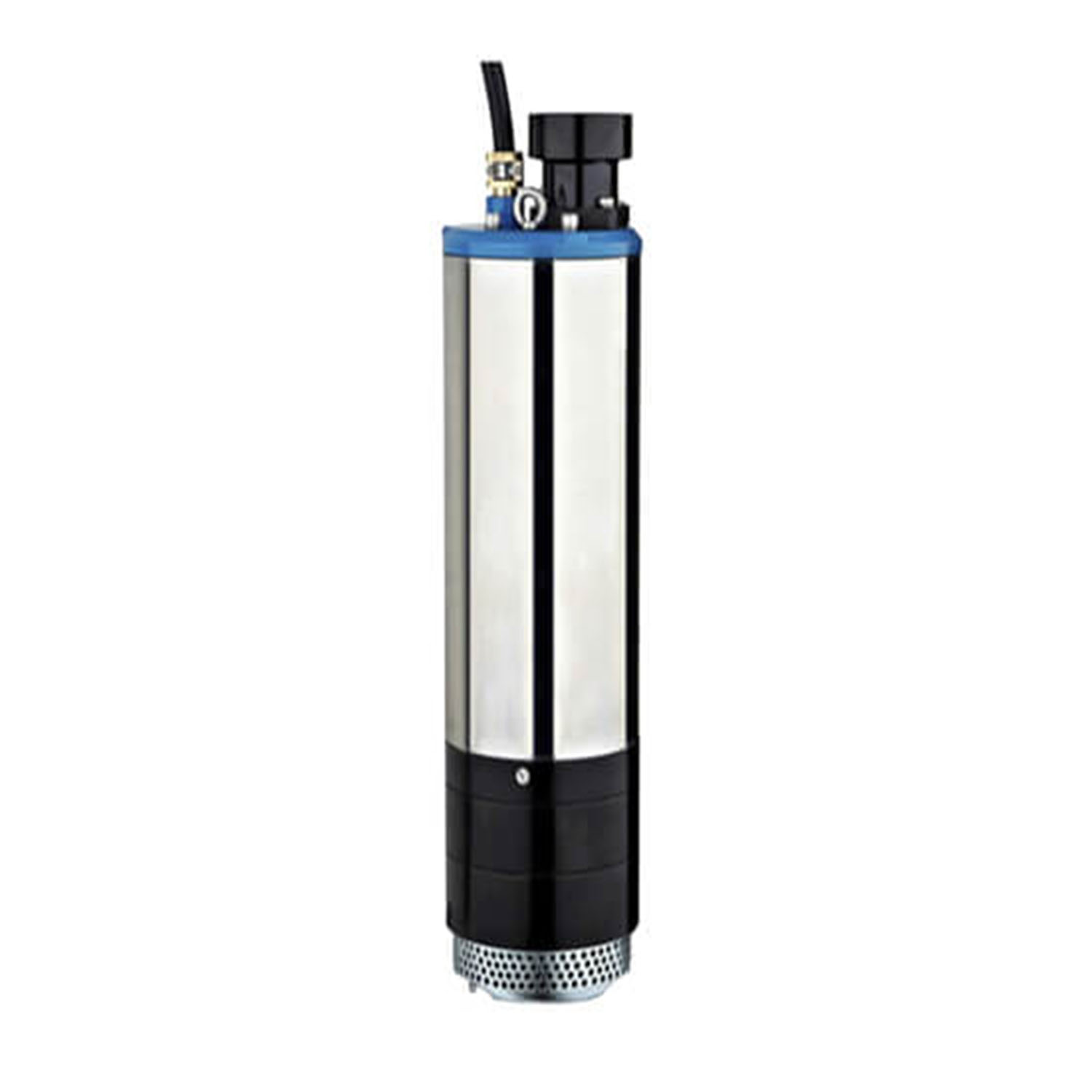

Prakash 8 Inch Submersible Pump

For Product Price WhatsApp Us

New

Add to Wishlist

SKU: PQXNSP-5.5 Category: Submersible Pump And Motor

Download Brochure

Application

Household
Garden
Farm
Agricultural Irrigation
Mining
Building
Factory

Specification

Water temperature: Upto 35˚C
PH: 6.5 to 8.5
Power supply: Three phase 380V ± 10%,
50HZ
Power: 2.2-22 Kw
Insulation Class: B
Protection Class: IP68
Capacity: Upto 90m3/hr
Head: Upto 148m
Maximum immersion depth: 20m
Cable Length: 15m

Feature and benefits

Hydraulic part under the motor and motor cooled by the pumped water for safe operation also with the pump only partially immersed.
Electric motor cooled by pumped liquid.

Model

Model	Motor power		Motor Protector	Outlet Inches	Max capacity m³/h	Max head M(m)	Impeller passage (mm)
Model	KW	HP	Motor Protector	Outlet Inches	Max capacity m³/h	Max head M(m)	Impeller passage (mm)
PQXNSP-5.5	4	5.5	Built-in	3	28	68	6
PQXNSP-7.5	5.5	7.5	Built-in	3	28	90	6
PQXNSP-10	7.5	10	Built-in	3	32	103	6
PQXNSP-15	11	15		3	43	100	8

Model	Motor power		Flow	m³/h	0	5	10	15	20	25	30	35	40	45	50
Model	KW	HP	Flow	LPM	0	83	167	250	333	417	500	583	666	750	833
PQXNSP-5.5	4	5.5	Head – Meter		68	67	65	55	43	27
PQXNSP-7.5	5.5	7.5			90	88	85	72	53	30
PQXNSP-10	7.5	10			103	102	97	88	70	41	12
PQXNSP-15	11	15			100	98	94	88	80	70	58	45	32	18	4

Reviews

There are no reviews yet.

Be the first to review “Prakash 8 Inch Submersible Pump”
