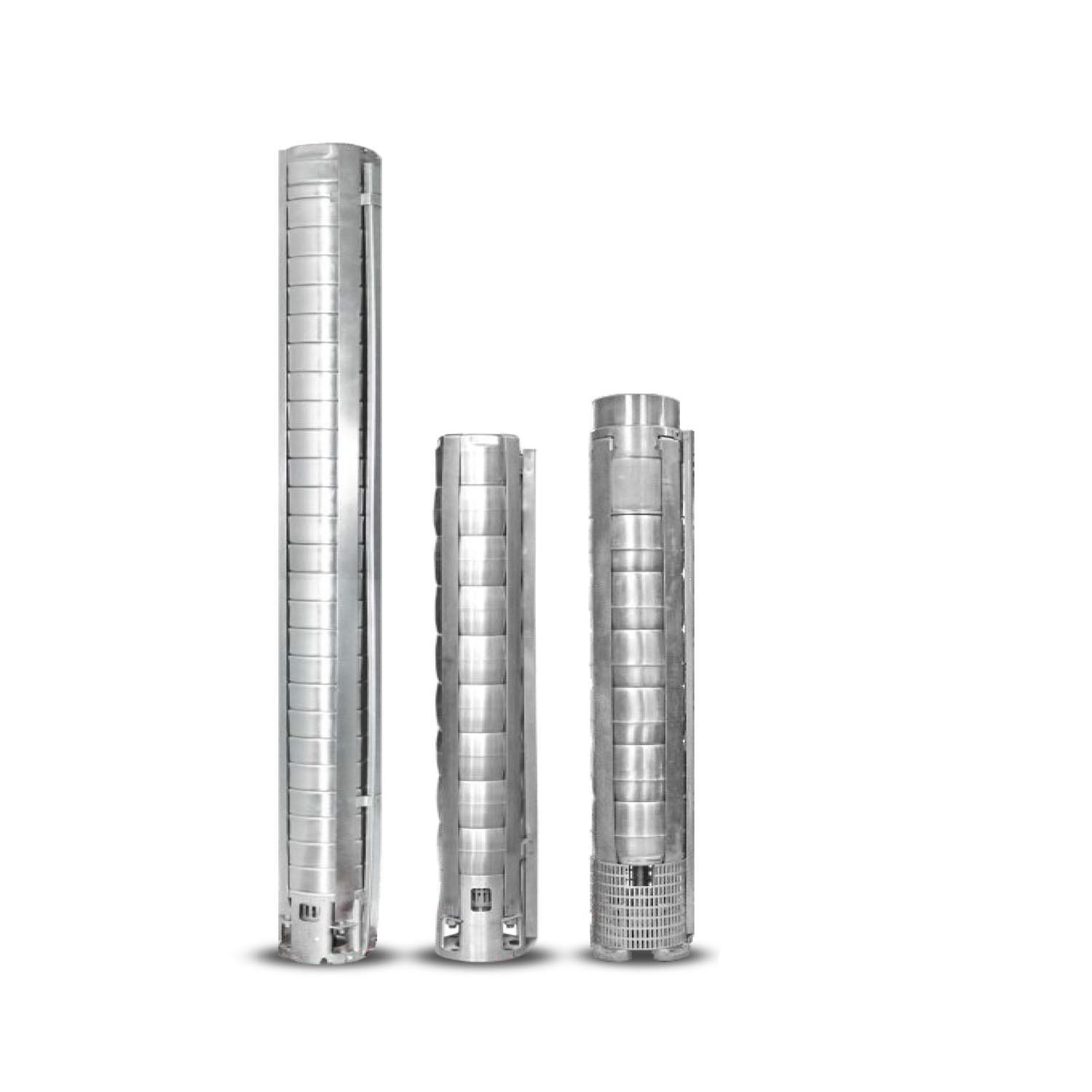

Prakash 8" Stainless Steel Submersible Pump

Download Brochure

Application

Domestic and community water supply
Irrigation in horticulture and agriculture
Drip and sprinkler application
Booster application
Civil and industrial application

Feature and benefits

Pump sizes for connecting to motor according to NEMA standards.
Delivery Casing with built-in not return valve for stop coming back water.
Manufactured from corrosion resistant materials for long life impellers, diffuser, and Delivery Casing are S.S. AISI-304
Specific impeller material selection ensures optimal performance in sandy bores.
This type models feature independently floating centrifugal impellers to provide easy starting and long life-automatically
Adjusting to match pumping conditions for various application.
High quality shaft bearings providing low friction and high wear resistance.
Strong stainless-steel drive shaft ensures positive impeller drive and longer life.

Specifications:

Water temperature : up to 35°C
Minimum internal diameter of well : 8″ Ø200mm.
Power : 55 to 93Kw
Capacity : up to 122 m³/h
Head : up to 423m
sand quality in to the water : 50g/m³
PH : 6.5-8.0

Models

Mixed flow SP-M77A , SP-M95A

Model

Model	Power		C	E	Pump Weight(kg)	Q	US GPM	0	132	176	220	264	308	352	396	440	484	528	537
	Power						M³/H	0	30	40	50	60	70	80	90	100	110	120	122
	KW	HP					LPM	0	500	667	834	1000	1167	1134	1500	1667	1834	2000	2034
Sp-M95A-1	5.5	7.5	619	178	21	H Meters		23	20	18	17	15	14	13	13	11	9	6	0
SP-M95A-2BB	5.5	7.5	747	178	24			27	24	23	22	21	19	17	14	12	10	0	0
SP-M95A-2A	7.5	10	747	178	24			39	34	32	29	27	26	24	21	18	14	9	8
SP-M95A-2	9.3	12.5	747	178	24			44	39	36	33	31	29	27	25	22	17	13	12
SP-M95A-3BB	9.3	12.5	875	178	28			49	43	40	37	35	32	29	25	20	14	8	7
SP-M95A-3B	11	15	875	178	28			56	50	47	44	41	38	35	31	26	20	13	12
SP-M95A-3	13	17.5	875	178	28			65	58	55	51	47	44	42	38	33	27	20	19
SP-M95A-4B	15	20	1003	178	31			77	70	65	60	56	53	49	44	37	29	20	18
SP-M95A-4	18.5	25	1003	178	31			86	78	73	67	63	59	55	51	44	36	26	25
SP-M95A-5AB	18.5	25	1131	178	35			94	85	79	74	69	65	60	54	45	35	24	22
SP-M95A-5	22	30	1131	178	35			106	96	90	84	78	73	69	63	55	44	32	30
SP-M95A-6	26	35	1259	178	38			129	117	110	102	96	90	84	77	68	55	41	38
SP-M95A-7	30	40	1387	178	42			148	135	126	118	110	103	96	88	77	62	46	43
SP-M95A-8	37	50	1529	178	46			170	155	145	136	127	119	112	102	90	73	54	50
SP-M95A-9	37	50	1657	178	49			189	173	162	151	141	133	124	114	99	80	59	55
SP-M95A-10	45	60	1785	196	53			214	197	185	173	162	152	143	132	116	95	71	66
SP-M95A-11	55	75	1913	196	56			237	217	205	191	179	169	158	146	129	106	79	74
SP-M95A-12	55	75	2041	196	60			257	236	222	208	195	183	172	158	140	115	86	80
SP-M95A-13	55	75	2169	196	63			278	255	240	224	210	198	185	170	150	123	92	86
SP-M95A-14	63	85	2297	196	67			300	276	259	243	227	214	201	185	163	134	100	93
SP-M95A-15	75	100	2425	196	71			321	296	278	260	244	230	215	198	175	144	107	100
SP-M95A-16	75	100	2553	196	74			344	314	296	277	259	244	229	211	186	152	114	106
SP-M95A-17	75	100	2681	196	78			362	333	313	293	275	258	242	223	196	160	120	112
SP-M95A-18	93	125	2809	196	81			382	352	331	309	290	272	255	235	206	169	125	117
SP-M95A-19	93	125	2937	196	85			402	370	348	325	305	287	269	247	216	177	131	122
SP-M95A-20	93	125	3065	196	88			423	388	365	341	320	301	281	258	226	184	137	128

Model	Power		C	E	Pump Weight(kg)	Q	US GPM	0	44	88	132	176	220	264	308	352	396	440
	Power						M³/H	0	10	20	30	40	50	60	70	80	90	100
	KW	HP					LPM	0	167	333	500	667	834	1000	1167	1134	1500	1667
SP-M77A-1	5.5	7.5	619	178	21	H Meters		21	21	20	19	17	15	14	13	12	10	7
SP-M77A-2B	5.5	7.5	747	178	24			33	32	31	29	27	25	22	20	16	12	7
SP-M77A-2	7.5	10	747	178	24			41	40	39	36	33	31	28	26	23	18	13
SP-M77A-3B	9.3	12.5	875	178	28			53	52	51	48	44	40	37	33	28	22	14
SP-M77A-3	11	15	875	178	28			61	60	58	55	50	46	42	39	34	28	20
SP-M77A-4B	13	17.5	1003	178	31			73	72	70	66	61	56	51	46	40	31	21
SP-M77A-4	15	20	1003	178	31			81	80	78	73	68	62	57	52	46	38	27
SP-M77A-5	18.5	25	1131	178	35			100	100	97	92	85	78	72	66	58	47	34
SP-M77A-6	22	30	1259	178	38			120	120	116	110	102	94	86	78	69	56	41
SP-M77A-7	26	35	1387	178	42			140	140	136	129	119	110	101	92	81	66	48
SP-M77A-8B	26	35	1515	178	46			152	151	147	139	129	118	108	98	85	68	48
SP-M77A-8	30	40	1515	178	46			160	160	156	147	137	126	116	105	93	76	55
SP-M77A-9	30	40	1643	178	49			179	179	174	164	152	140	129	117	103	85	61
SP-M77A-10	37	50	1785	178	53			199	199	194	184	171	157	145	132	117	96	69
SP-M77A-11	37	50	1913	178	57			218	218	212	201	186	172	185	144	127	104	74
SP-M77A-12	45	60	2041	200	60			242	243	237	225	209	193	178	163	145	120	88
SP-M77A-13	55	75	2169	200	64			264	264	258	245	228	211	195	178	159	132	98
SP-M77A-14	55	75	2297	200	68			283	284	277	263	245	226	209	191	170	141	104
SP-M77A-15	55	75	2425	200	71			303	303	296	281	262	242	223	204	181	150	110
SP-M77A-16	63	85	2553	200	75			324	325	317	301	281	259	239	219	195	162	119
SP-M77A-17	63	85	2681	200	78			343	344	336	319	297	274	253	232	206	171	126
SP-M77A-18	63	85	2809	200	82			363	363	355	337	314	290	267	244	217	180	132
SP-M77A-19	75	100	2937	200	85			383	384	376	357	332	307	283	259	230	191	140
SP-M77A-20	75	100	3065	200	89			404	404	395	375	349	322	297	271	241	200	146
